Repair Nokia 130 Display Light Ways Problem Succseefully Mobile Phono 2016

Nokia 130 LCD Display Solution Jumper Problem Ways
Here’s a troubleshooting hints for Nokia 130 LCD Display problem such as blank display or no display at all and otherwise a corrupted or garbled display. This solution may help you for easy repair procedures.

Note: This only works if you can still hear something on the phone like tones, incoming alerts and not on a white screen problem or hang up on white screen situation.

The quick step to fix display problem, is that you have to verify a working LCD, just replace the LCD screen module at once just to ensure that the LCD is working or not and then proceed to hardware troubleshooting after confirming that the LCD is still fine. Just locate the highlighted components shows on figure solution picture below and do have a careful check up on each one of them one by one.

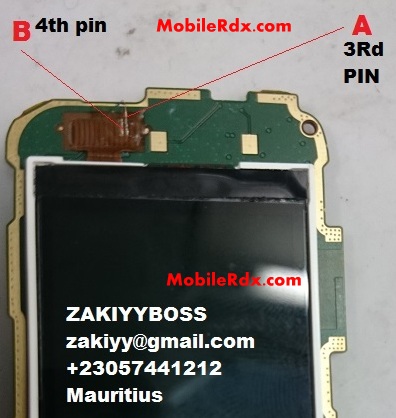

Hardware Solution: Nokia 130 Lcd Light Problem Solution

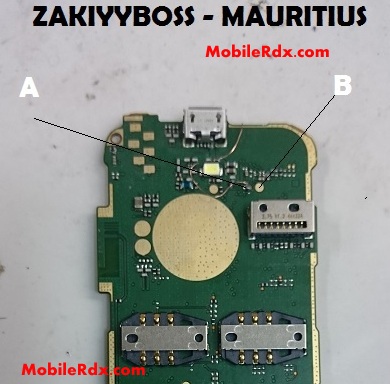

Nokia 130 Display Lcd Light Problem Solution

Repair Video:

Check the display pin connector, clean it, rework or re-solder it if necessary.
Check the capacitors and coils, replace if necessary, and then check the VBAT voltage and the VIO voltage on it. Those are the supply voltages for the display

For damaged or lifted display pin connector or due to wet or water damaged, here’s the tracing guide if you might think that the problem lies on a broken display signal line paths.

So, hope this helps you in fixing display problem on Nokia 130.

Nokia 130, LCD, Display, Solution, Jumper, Problem, Ways
Nokia 130 LCD Displa Solution Jumper Problem Ways LCD Display Not Working
