Nokia Asha 502 Charging Ways Usb Jumper New Hardware Solution 2016

Nokia Asha 502 Charging Ways Usb Jumper Solution
Nokia 502 Charging Solution Jumper Usb Problem Ways

The picture below shows the basic components needs to check if the phone somehow doesn’t charge if the wall charger is plug-in. But you may first ensure that the wall charger and the phone’s battery you are using are still working. A drained battery will not charge, try to plug the battery charger around an hour or try to replace it with a good one, to quickly check if the battery got the problem.

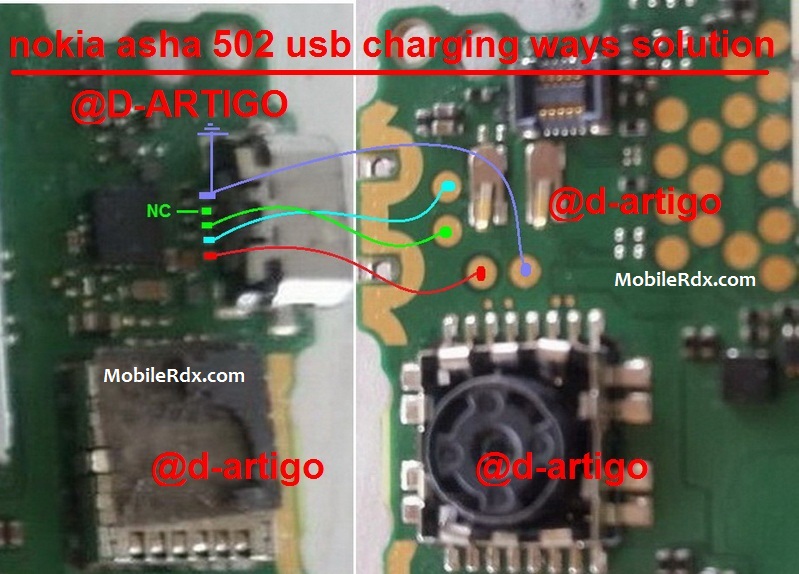

So if you are experiencing any charging problem or problem connecting your Nokia 502 to your computer via USB cable then it is possible that your Nokia Asha 502 charging connector is faulty. Replacing it with a new one is the only solution here. But if by any chance the USB connector prints are broken then you have to make the jumpers as shown in the diagram below.

Here are Nokia Asha 502 USB Connector ways problem solutions. Please study these diagrams very carefully before you start repairing. Nokia Asha 502 Charging Ways Usb Jumper Solution

How to fix the path Charging Nokia Asha 502
For this second step, you have to check the first path via Multi Tester, so you can easily find out a path-breaking or problematic, there are six lines that you must use a multi-tester checks, among which lane V-Charging Ground and for others the path Usb, please check Via multi-tester, the path which still produce voltage and which path to dropping out and not put out voltage lines jumpers must do, if you’ve found all the paths are not problematic and troublesome path, then you just looking for a way path that still produce a voltage drop out and to do jumpers, to facilitate you, below we provide Schema Usb charging Nokia Asha 502 please open.

If you have further questions please don’t hesitate to leave a comment.
Note: Every repairing solution posted here is tested by at least one member of our team. Use the information available here at Your Own Risk. We are not responsible if any harm comes to your device during the repairing process.

Nokia Asha 502,Usb,Charging,Problem,Solution,Jumper,Ways
Nokia 502 Usb Not Charging, Usb Not Recognized, Charging Not save, Not charging
